extended version protrudes the rear of UK pick up bed
2150mm standing room height from floor

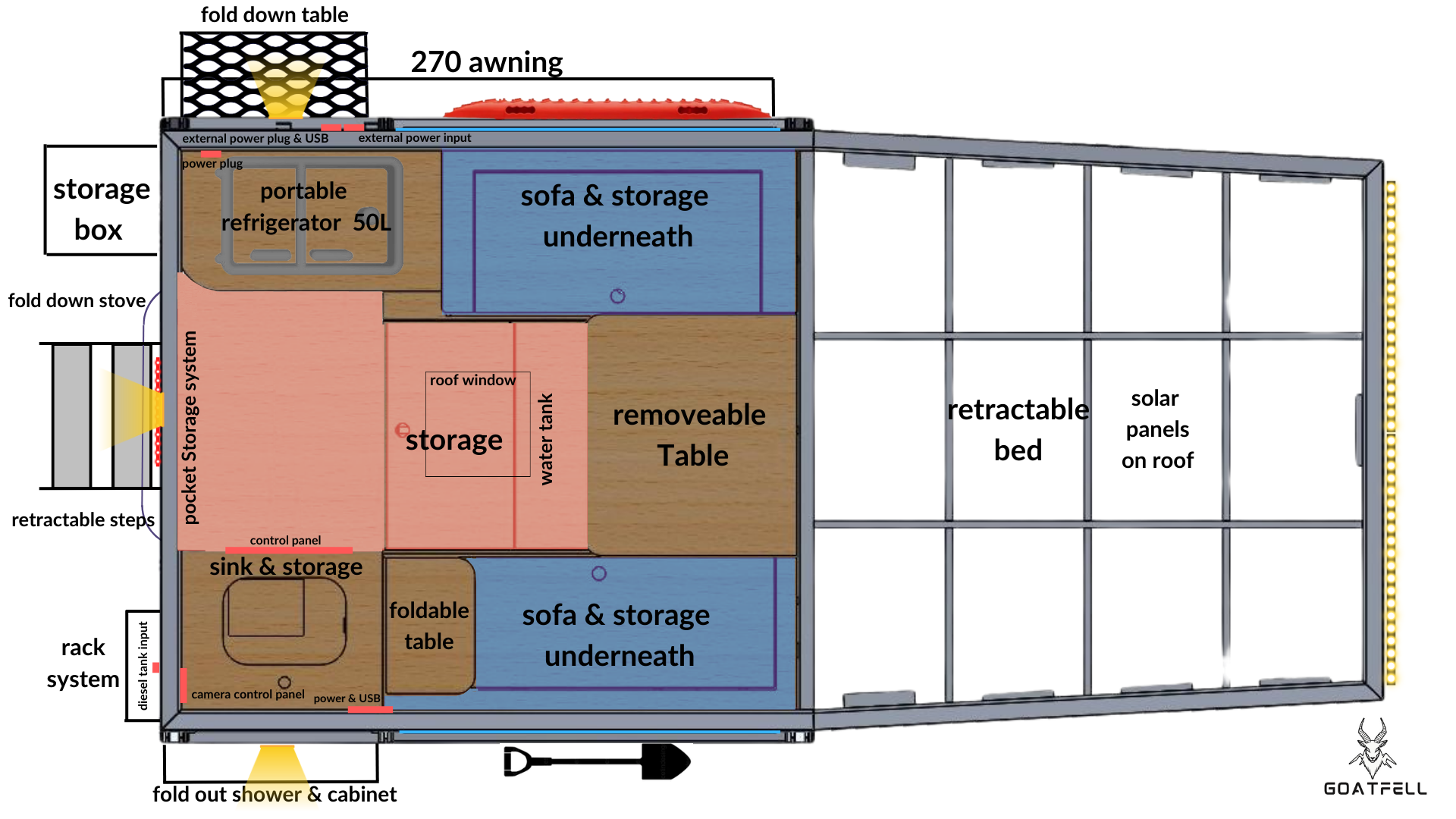

storage under left sofa 805(L) x 370(W) x 370(H)
storage under right sofa 760(L) x 345(W) x 310(H)
storage below first step 630(L) x 330(W) x 260(H)
space for portable fridge 760(L) x 435(W)
foldable table 380(L) x 245(W)
exterior storage box 235(W) x 515(H)
Table in upright position (mm)
Table and extra panel down for secondary sleeping area (mm)

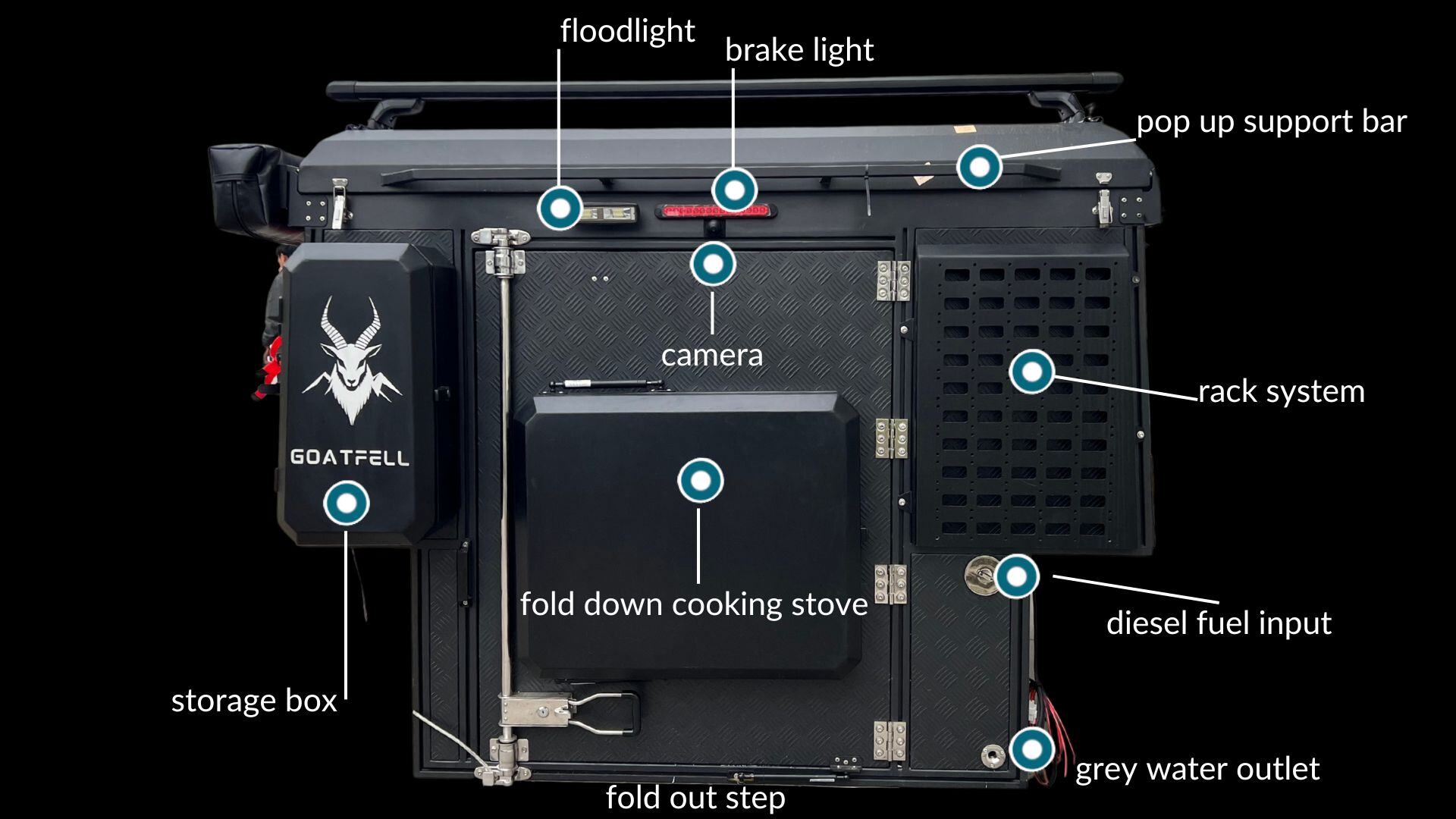

7 Master control panel. The black secure box at the bottom is the diesel storage which is filled up from exterior fuel input nozzle at the rear back right hand side
8 Keys to keep the unit secure including; back door, fresh water gravity inlet, pop up top and cooking stove
1 External High Fire Cooking Stove. Secure unit the stove folds down and is run by a portable gas cylinder that is fixed on the underside
2 Foldable step pulls down for easy access into the unit. Fold back up when driving

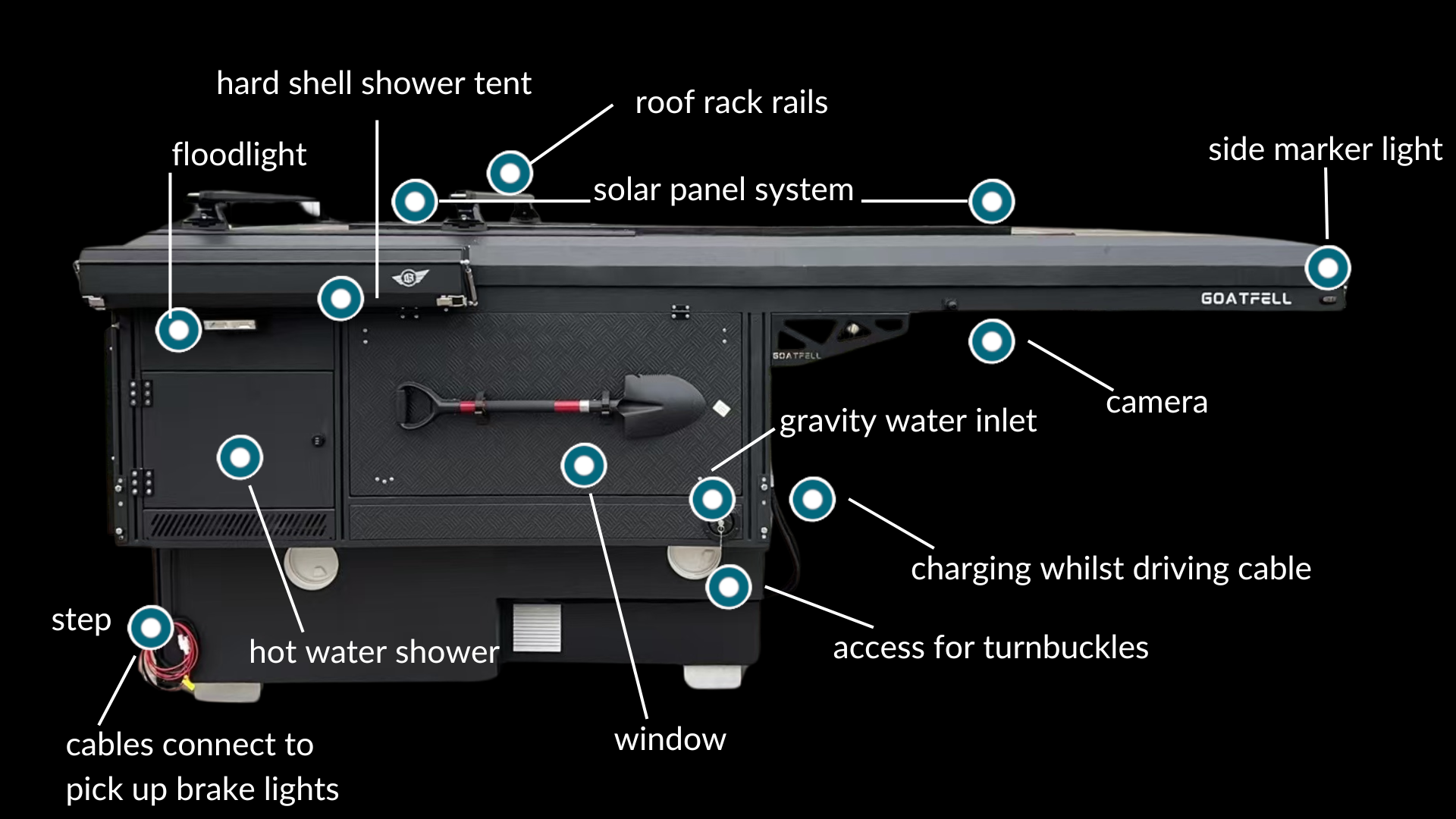

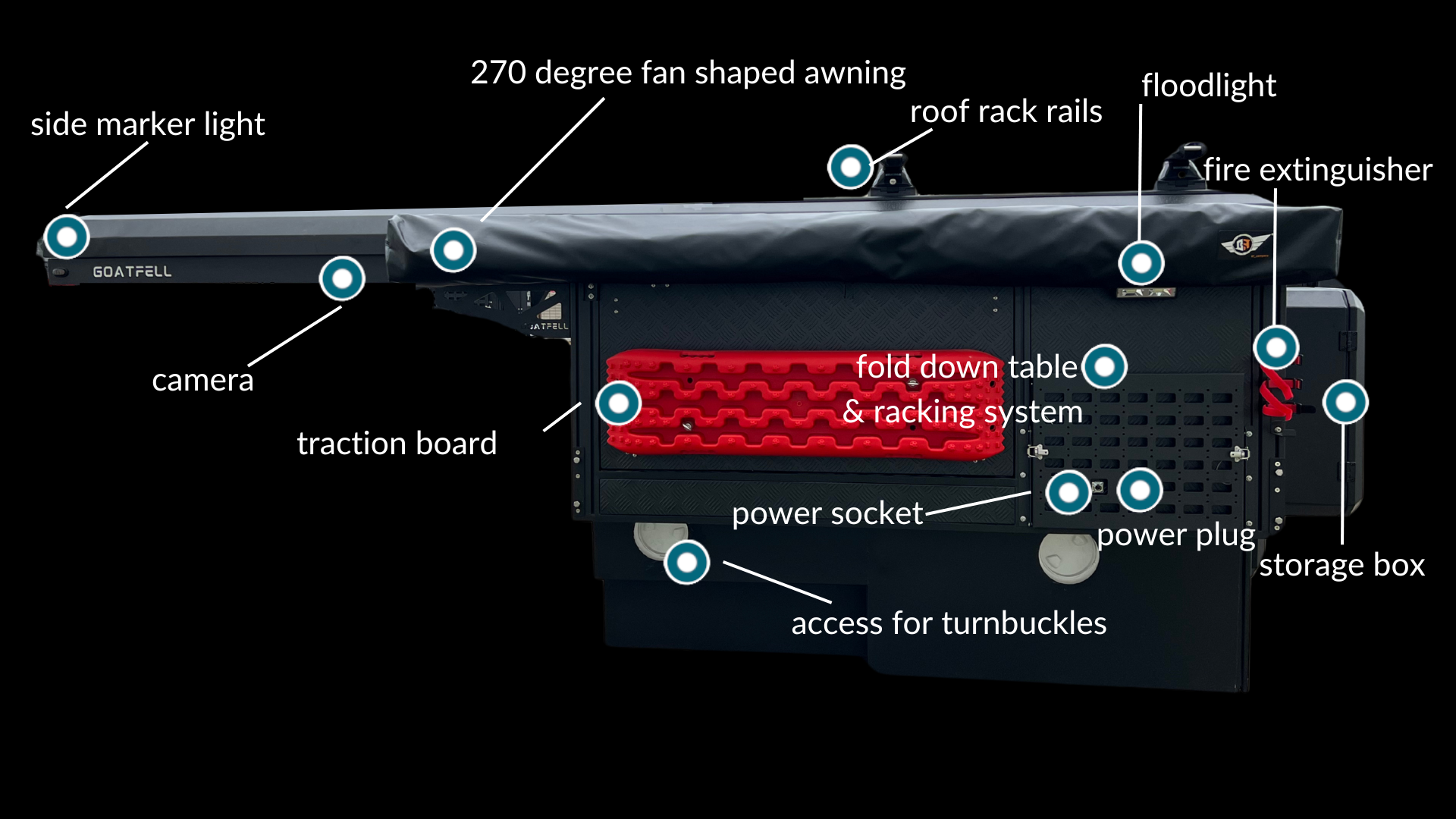

3 270 degree fan shaped awning for maximum shade cover. Has poles that extend and fit into the ground as support. The underside of the awning has lighting
4 Wall system that can be added to the 270 degree awning system. Creates a large sheltered and private space
5 Pocket storage system within internal door
6 Generous 215cm standing room inside for a light and airy feeling. Warm and toasty in the winter with the diesel heater and insulation
7 Master control panel. The black secure box at the bottom is the diesel storage which is filled up from exterior fuel input nozzle at the rear back right hand side
8 Keys to keep the unit secure including; back door, fresh water gravity inlet, pop up top and cooking stove
1 External High Fire Cooking Stove. Secure unit the stove folds down and is run by a portable gas cylinder that is fixed on the underside
2 Foldable step pulls down for easy access into the unit. Fold back up when driving
Our Concept: Travel Light, Live Big.
The camper is 8th generation in design, fine tuned over 3 years of road testing by truck camper enthusiasts. This version has been modified for the UK Market pick up trucks to maximise size and living space.
Our demountable camper unit embodies a fusion of intelligent engineering and minimalist design. The main body is built with aluminium-magnesium alloy structure, lightweight and incredibly strong. The pop up top design allows for full body strength and huge space inside coupled with aerodynamic efficient travel experience when on the move.
Standing room inside is 215cm, providing a spacious feel and warm feeling inside using outdoor waterproof tarpaulin canvas with fully insulated soft fabric inside.
